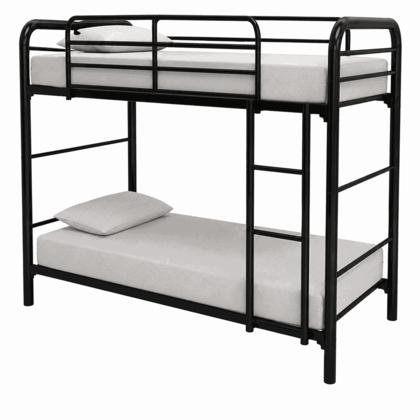

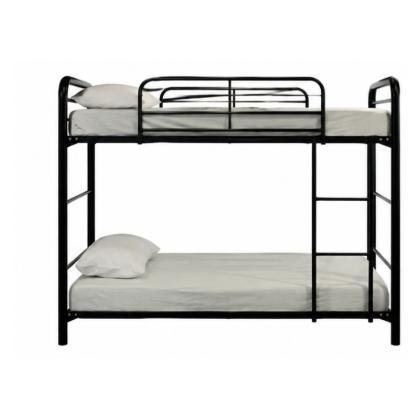

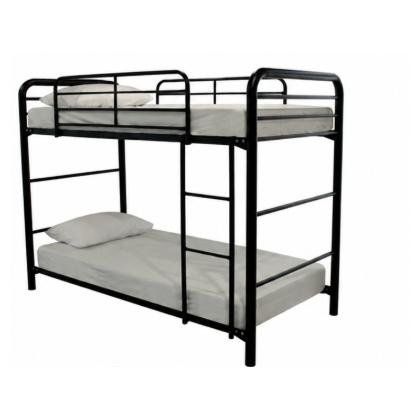

Tier bunk beds (Fixed) for Adult (1910 mm x 965 mm)
100% Original Products
Top Brand
Pay On Delivery By Wood State
Safe Delivery By Wood State
2 Days Replacemnet
Hotline Order:
Mon - Sat: 10:30AM - 8:30PM
1800-53-20-222
Become a Vendor?
Register now
Specifications
Type of bunk beds 2 – Tier bunk beds (Fixed)
Railing / guard rail at upper bed Fixed
Tail board With
Shape of tail board Rectangular
Head rest With
Shape of headrest Rectangular
Provision for mosquito net holding rod Fixed
Components assembly By welding
Provision of mattress panel With
Mode of supply Knocked Down - To Be Assembled At Consignee Site By Consignee Himself
Type of Surface upholstery Fabric
Bed Dimensions (Length x Width) (±5 mm) Adult (1910 mm x 965 mm)
Height of entire structure (±5 mm) – excluding Mosquito net holding rods (minimum ceiling clearance to be 760 mm) 1600 millimeter
Height of lower tier (±5 mm) (Buyer should be careful while selecting keeping in mind minimum ceiling clearance as required ideally 760 mm minimum) 405 millimeter
Gap between beds (clear distance between the upper and lower bed bases in mm) (± 5 mm) 750 millimeter
Structure of metal bed frame including legs and head / tails / railing /supporting structure MS hollow box rectangular or square sections
Vertical leg structure sections (tolerance ± 2 mm excluding wall thickness) Tube of size 50 mm X 50 mm with 1.2 mm wall thickness
Supporting structure of horizontals sections (tolerance ± 2 mm excluding wall thickness) Tube of size 50 mm X 25 mm with 1.2 mm wall thickness
Other joining horizontal structure sections (tolerance ± 2 mm excluding wall thickness) Tube of size 25 mm X 25 mm with 1.2 mm wall thickness
Stair rail sections for upper level (tolerance ± 2 mm excluding wall thickness) Tube of size 50 mm X 25 mm with 1.2 mm wall thickness
Stair step sections (tolerance ± 2 mm excluding wall thickness) Tube of size 25 mm X 25 mm with 1.2 mm wall thickness
Material of mattress panel Plywood
Thickness of mattress panel 12 mm Ply
Upper bed support rail sections (tolerance ± 2 mm excluding wall thickness) Tube of size 50 mm X 25 mm with 1.2 mm wall thickness
Head board sections (tolerance ± 2 mm excluding wall thickness) Tube of size 50 mm X 25 mm and 25 mm X 25 mm with 1.2 mm wall thickness
Tail board sections (tolerance ± 2 mm excluding wall thickness) Tube of size 50 mm X 25 mm and 25 mm X 25 mm with 1.2 mm wall thickness
Paint /Finish of Metal parts Powder Coating
Finish of head board / Tail board Powder Coating
Min Powder/paint coating thickness (Micron) 50 microns
